Morbidelli/SCM - Woodworking Pod and Rail Vacuum Cup

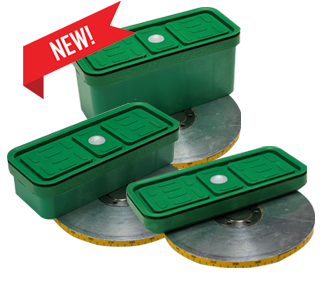

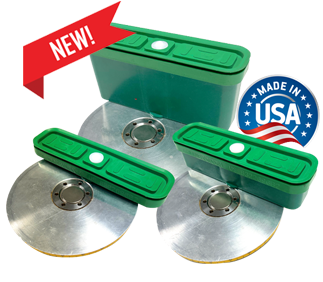

BVC Replacement cup for SCM pod & rail - Three Different Sizes

• Size: 174x72x50mm
• Size: 174x72x75mm
• Size: 174x72x110mm

• Better Vacuum Cups is proud to announce an all new design vacuum cup for the pod & rail SCM and Morbidelli machines.
• This cup will bolt to your existing round aluminum base plate (pictured here but not included).
• This cup comes with a replaceable rubber top that has a flexible lip seal to mirror your parts. Route into your cup, no problem, use the foam gasket to repair the lip seal and your cup is still usable.
• If you do not want to repair with gasket, simply buy a new top rubber top. Uses part # SC17472RT.
• Weight: 0.5 lbs
• Cup comes complete with green plastic block, rubber top, ball valve and hardware to bolt on your existing plate. It is important to note BVC does not supply any base – utilize the base you currently have.



BVC Replacement cup for SCM pod & rail - Three Different Sizes

• 174x47x50mm
• 174x47x75mm
• 174x47x110mm

• Better Vacuum Cups is proud to announce an all new design vacuum cup for the pod & rail SCM and Morbidelli machines.

• This cup will bolt to your existing round aluminum base plate (pictured here but not included).

• This cup comes with a replaceable rubber top that has a flexible lip seal to mirror your parts. Route into your cup, no problem, use the foam gasket to repair the lip seal and your cup is still usable.

• If you do not want to repair with gasket, simply buy a new top rubber top for $46.50. Uses part # SC17447.

• Cup comes complete with green plastic block, rubber top, ball valve and hardware to bolt on your existing plate.

• It is important to note BVC does not supply any base – utilize the base you currently have.

BVC replacement vacuum cups for SCM pod & rail

• Part # SC129120H86
• Base size: 129x120mm
• Top cup size: 114x86mm
• Cup comes complete with base, bottom gasket, top vacuum cup and ball valve. No gasket necessary when using this cup unless you want to gasket off to do smaller parts on a larger cup. Once you buy the base, you will only need to replace top cup due to operator damages. Cup can be routed into over and over and the foam gasket material can be added to recreate the seal. When cup is not in use, the ball valve protects your vacuum ports it is sitting over as it stays closed when no part is detected on the top.
• This cup comes in quarter size as well.
• Replaceable tops are as follows: MM11486RT

BVC replacement vacuum cups for SCM pod & rail

• BVC replacement vacuum cups for scm pod & rail
• Part # SC129120Q49
• Base size: 129x120mm
• Top cup size: 114x49mm
• Cup comes complete with base, bottom gasket, top vacuum cup and ball valve. No gasket necessary when using this cup unless you want to gasket off to do smaller parts on a larger cup. Once you buy the base, you will only need to replace top cup due to operator damages. Cup can be routed into over and over and the foam gasket material can be added to recreate the seal. When cup is not in use, the ball valve protects your vacuum ports it is sitting over as it stays closed when no part is detected on the top.
• This cup comes in half size as well.
• Replaceable tops are as follows: MM11449RT

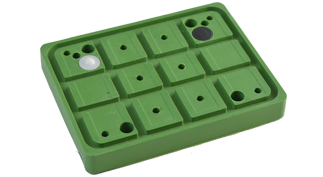

BVC REPLACEMENT CUP FOR OLDER STYLE MORBIDELLI AUTHOR 156x120x19.8mm

• BVC Replacement Cup For Older Style Morbidelli Author Series
• Cups are equipped with the plug and check ball valve and includes gasket.

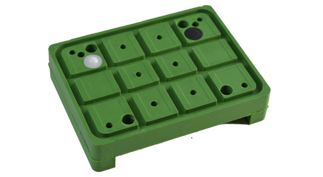

BVC REPLACEMENT CUP FOR OLDER STYLE MORBIDELLI AUTHOR 156x120x34.8mm

• BVC Replacement Cup For Older Style Morbidelli Author Series
• Cups are equipped with the plug and check ball valve and includes gasket

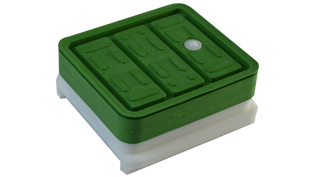

BVC REPLACEMENT CUP FOR TVN TABLE 132x145X50mm

• BVC replacement vacuum cups for TVN table
• Part # SC2937F  145x132x50mm
• Replaces SCM part # 2937220763F 145x145x50mm
• Cup comes complete with base, bottom gasket, top vacuum cup and ball valve. No gasket necessary when using this cup unless you want to gasket off to do smaller parts on a larger cup. Once you buy the base, you will only need to replace top cup due to operator damages. Cup can be routed into over and over and the foam gasket material can be added to recreate the seal. Cups rotate every 15 degrees and the top is removable without any tools needed. When cup is not in use, the ball valve protects your vacuum ports it is sitting over as it stays closed when no part is detected on the top.
• This cup comes in full, half and quarter size. Replaceable tops are as follows:
• Bi9212 145x132
• Bi9212H 75x132
• Bi9212Q 50x132

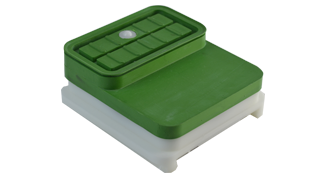

BVC REPLACEMENT VACUUM CUPS FOR TVN TABLE IN HALF SIZE

• BVC Replacement cup for your SCM TVN rail.
• Vacuum cups replaces SCM part # 2990420245A
•  BVC part # SC2937H
• Cup comes complete. Once you buy base you do not need to purchase again.

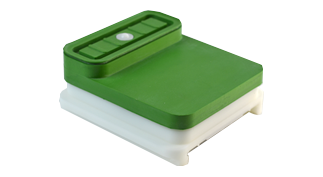

BVC REPLACEMENT VACUUM CUPS FOR TVN TABLE IN QUARTER SIZE

• BVC Replacement vacuum cups for the TVN table in quarter size. This is a complete cup, includes base, replaceable vacuum cups, ball valve, bottom gasket and top gasket for when needed. This base must be bought for cups to rotate in. Rubber replaceable vacuum cups are placed into base and can be rotated every 15mm degrees.
• Part #: SC2937Q

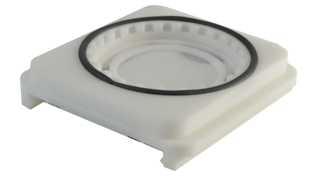

BVC REPLACEMENT BASE FOR SC2937 SERIES

• This base must be bought for cups to rotate in.  Cups are placed into base. You can choose size needed. Cups come in full, half and quarter size.
• Replacement Base Part # SC2010B

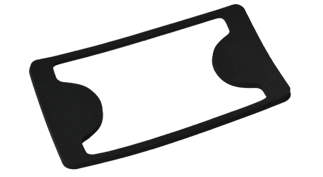

BVC REPLACEMENT GASKET FOR BOTTOM BASE

• Replacement parts:
• Replacement bottom Gasket as seen in picture SC2937GA.B

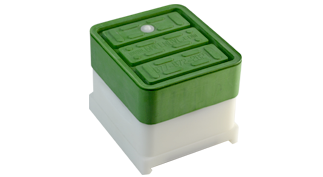

BVC REPLACEMENT VACUUM CUPS FOR TVN TABLE

• Cup comes complete. Once you buy the base, you will only need to buy replacable tops due to operator damages. Top cup is a solid rubber material, therefore eliminating the need to use gasket. If routed into, you simply put gasket in the grooves and you recreate the seal. Cups are rotatable every 15 degrees. Replaceable tops are located on the Routech products page.
• Part # SC2937F.110  145x132x110mm

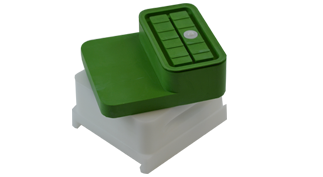

BVC REPLACEMENT VACUUM CUPS FOR TVN TABLE

• Cup comes complete. Once you buy the base, you will only need to buy replacable tops due to operator damages. Top cup is a solid rubber material, therefore eliminating the need to use gasket. If routed into, you simply put gasket in the grooves and you recreate the seal. Cups are rotatable every 15 degrees. Replaceable tops are located on the Routech products page.
• Part # SC2937H.110  75x132x110

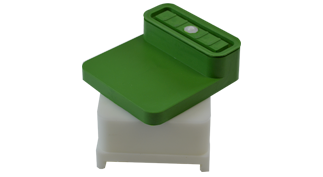

BVC REPLACEMENT VACUUM CUPS FOR TVN TABLE

• Cup comes complete. Once you buy the base, you will only need to buy replacable tops due to operator damages. Top cup is a solid rubber material, therefore eliminating the need to use gasket. If routed into, you simply put gasket in the grooves and you recreate the seal. Cups are rotatable every 15 degrees. Replaceable tops are located on the Routech products page.
• Part # SC2937Q.110  50x132x110mm

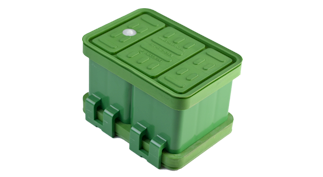

MM SERIES BVC REPLACEMENT CUP FOR K2 RAIL 114x160x100mm

• Better Vacuum Cups, Inc. has designed a better functioning modular design. This cup is for newer style Weeke, Homag, Masterwood and Imas with 100mm tall cups that incorporate a rubber top and bottom. If you are tired of throwing out those gray rubber tops, our cup is right for you! You can actually route into the cup and still use it over and over!
•  MM114160 Full size cup 114x160x100mm Part # MM114160K2

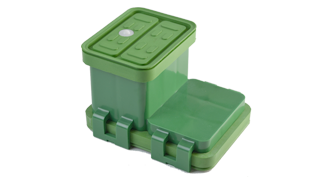

MM SERIES BVC REPLACEMENT CUP FOR K2 RAIL 114x86x100mm

• Better Vacuum Cups, Inc. has designed a better functioning modular design. This cup is for newer style Weeke, Homag, Masterwood and Imas with 100mm tall cups that incorporate a rubber top and bottom. If you are tired of throwing out those gray rubber tops, our cup is right for you! You can actually route into the cup and still use it over and over!
• MM11486 Half size cup 114x86x100mm Part # MM11486K2

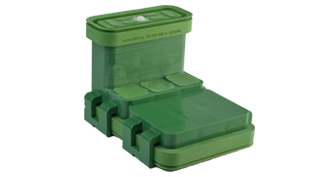

MM SERIES BVC REPLACEMENT CUP FOR K2 RAIL 114x49x100mm

• Better Vacuum Cups, Inc. has designed a better functioning modular design. This cup is for newer style Weeke, Homag, Masterwood and Imas with 100mm tall cups that incorporate a rubber top and bottom. If you are tired of throwing out those gray rubber tops, our cup is right for you! You can actually route into the cup and still use it over and over!
• MM11449 Quarter size cup 114x49x100mm Part # MM11449K2

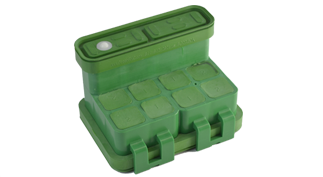

MM SERIES BVC REPLACEMENT CUP FOR K2 RAIL 45x160x100mm

• Better Vacuum Cups, Inc. has designed a better functioning modular design. This cup is for newer style Weeke, Homag, Masterwood and Imas with 100mm tall cups that incorporate a rubber top and bottom. If you are tired of throwing out those gray rubber tops, our cup is right for you! You can actually route into the cup and still use it over and over!
• MM45160 One third size cup on Y axis of rail 45x160x100mm Part # MM45160K2

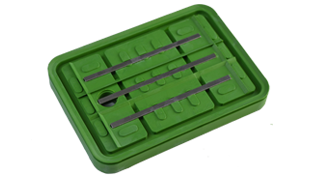

MM SERIES REPLACEMENT RUBBER BOTTOM INCLUDING METAL BARS 114x160mm

• BVC Replacement rubber BOTTOM for HolzHer pod & rail 5 axis 114x160, includes metal bars.
• Part # MM114160.K2B

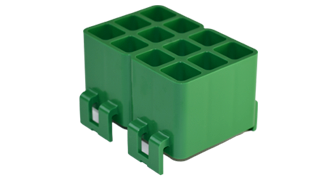

BVC REPLACEMENT BLOCK 114x160x100mm

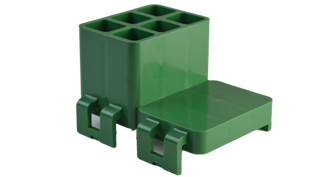

BVC REPLACEMENT BLOCK 114x86x100mm

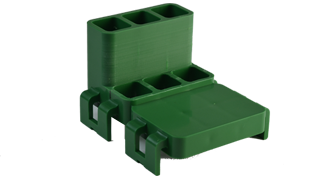

BVC REPLACEMENT BLOCK 114x49x100mm

BVC REPLACEMENT BLOCK 45x160x100mm

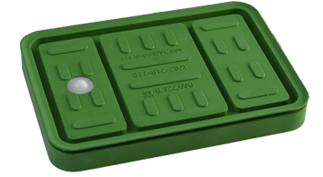

MM SERIES REPLACEMENT RUBBER TOP 114x160mm

• BVC Replacement rubber top, includes ball valve
• Part # MM114160RT  114x160mm .

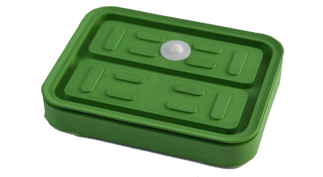

MM SERIES REPLACEMENT RUBBER TOP 114x86mm

• BVC Replacement rubber top , Half Size 114x86mm, includes ball valve.
• Part # MM11486RT

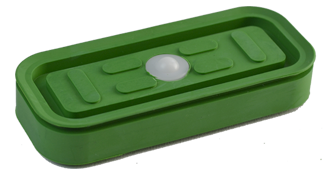

MM SERIES REPLACEMENT RUBBER TOP 114x49mm

• BVC replacement rubber top 114x49mm, includes ball valve.
• Part # MM11449RT

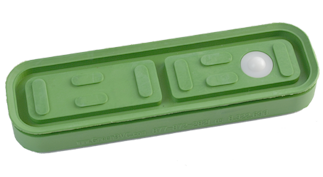

MM SERIES REPLACEMENT RUBBER TOP 45x160mm

• BVC replacement rubber top 45x160mm, includes ball valve.
• Part # MM45160RT

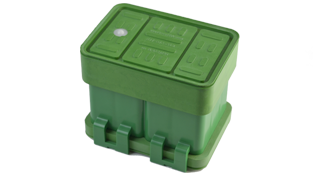

BVC REPLACEMENTS FOR 125MM TALL POD & RAIL FOR 5 AXIS 114x160x125mm

• BVC's replacement cups for HolzHer pod & rail 5 axis machines. Full size cup
• Part # MM114160K2.125   114x160x125mm

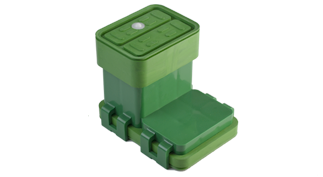

BVC REPLACEMENTS FOR 125MM TALL POD & RAIL FOR 5 AXIS 114x86x125mm

• BVC's replacement cups for HolzHer pod & rail 5 axis machines.
• Half Size 114x86x125mm

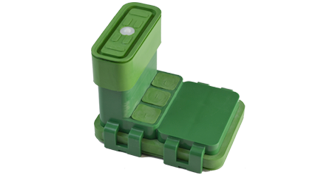

BVC REPLACEMENTS FOR 125MM TALL POD & RAIL FOR 5 AXIS 114x49x125mm

• BVC's replacement cups for HolzHer pod & rail 5 axis machines.
• Quarter Size: 114x49x125mm
• MM11449K2.125
