Woodworking Nested/Flat/Matrix Table Vacuum Cups

THAT WORKS ON TOP OF THE SPOILBOARD IN 35MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table on top of your existing spoil board. Maximize the flexibility of your flat table with BVC Flat Table Cups.

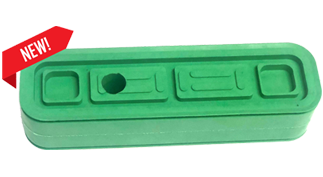

• 50x180x35mm BVC’s quarter size flat table vacuum cup for your spoil board can be used to do small parts, as small as just under 2 inches.
• This cup is not for the grid table, this will be used on top of your existing spoil board or can have a fitting in the side to run vacuum hose to it.

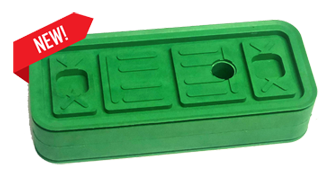

THAT WORKS ON TOP OF THE SPOILBOARD IN 35MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table on top of your existing spoil board. Maximize the flexibility of your flat table with BVC Flat Table Cups.
• 75x180x35mm BVC’s full size flat table vacuum cup for your spoil board can be used to do small parts as small as 3 inches.
• This cup is not for the grid table, this will be used on top of your existing spoil board.

THAT WORKS ON TOP OF THE SPOILBOARD IN 35MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table on top of your existing spoilboard. Maximize the flexibility of your flat table with BVC Flat Table Cups.

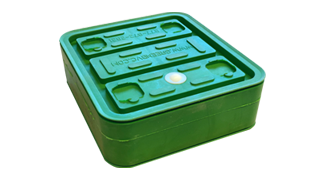

• 145x132x35mm BVC’s full size flat table vacuum cup for your spoilboard can be used to do large parts or can be sectioned off with gasket to do smaller parts.
• This cup is not for the grid table, this will be used on top of your existing spoilboard.

FLAT TABLE VACUUM CUPS IN 29MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. Maximize the flexibility of your flat table with BVC Flat Table Cups.

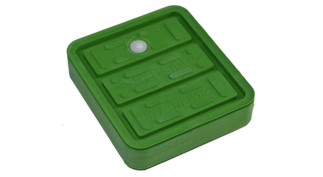

• 145x132x29mm Full size flat table vacuum cup for the Biesse Rover grid table.
• FL1000

FLAT TABLE VACUUM CUPS IN 29MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. Maximize the flexibility of your flat table with BVC Flat Table Cups.

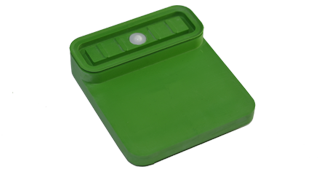

•  50x132x29mm Quarter size flat table vacuum cup for the Biesse Rover grid table
• FL1000Q

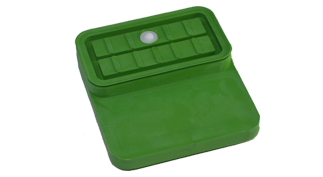

FLAT TABLE VACUUM CUPS IN 29MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. Maximize the flexibility of your flat table with BVC Flat Table Cups.
• 75x132x29mm Half size flat table vacuum cup for the Biesse Rover grid table
• FL1000H

BVC FLAT/GRID TABLE VACUUM CUPS IN 48MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. Maximize the flexibility of your flat table with BVC Flat Table Cups. Fits: Biesse, Busellato, CMS, Conquest, Cosmec, CR Onsrud, Komo, SCM Morbidelli and Routech, Weeke, Northwood and many more. Don’t have a grid on your table, no problem we can still help with exterior lines or a simple spoilboard pattern.

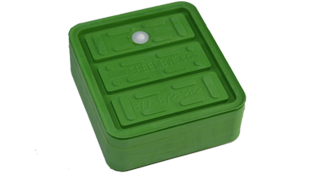

• 145x132x48mm BVC’s full size flat table vacuum cup for your grid can be used to do large parts or can be sectioned off with gasket to do smaller parts.
• FL1048

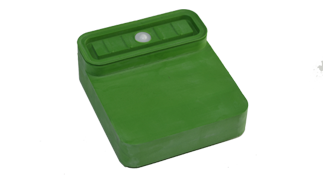

BVC FLAT/GRID TABLE VACUUM CUPS IN 48MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. Maximize the flexibility of your flat table with BVC Flat Table Cups. Fits: Biesse, Busellato, CMS, Conquest, Cosmec, CR Onsrud, Komo, SCM Morbidelli and Routech, Weeke, Northwood and many more. Don’t have a grid on your table, no problem we can still help with exterior lines or a simple spoilboard pattern.
• 50x132x48mm BVC’s quarter size flat table vacuum cup is used for parts as small as 2 inches.
• FL1048Q

BVC 1” WIDE FLAT/GRID TABLE VACUUM CUPS IN 48MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table.
• Maximize the flexibility of your flat table with BVC Flat Table Cups. Fits: Biesse, Busellato, CMS, Conquest, Cosmec, CR Onsrud, Komo, SCM Morbidelli and Routech, Weeke, Northwood and many more.
• Don’t have a grid on your table, no problem we can still help with exterior lines or a simple spoil board pattern.
• 25.4x132x48mm BVC’s 1” flat table vacuum cup is used for small parts.

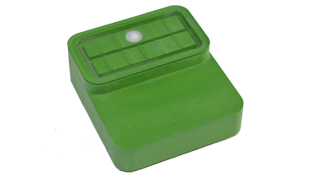

BVC FLAT/GRID TABLE VACUUM CUPS IN 48MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. Maximize the flexibility of your flat table with BVC Flat Table Cups. Fits: Biesse, Busellato, CMS, Conquest, Cosmec, CR Onsrud, Komo, SCM Morbidelli and Routech, Weeke, Northwood and many more. Don’t have a grid on your table, no problem we can still help with exterior lines or a simple spoilboard pattern.
•  75x132x48mm BVC’s half size flat table vacuum cup is used for smaller parts.
• FL1048H

BVC FLAT/GRID TABLE VACUUM CUPS IN 74MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. Maximize the flexibility of your flat table with BVC Flat Table Cups. Fits: Biesse, Busellato, CMS, Conquest, Cosmec, CR Onsrud, Komo, SCM Morbidelli and Routech, Weeke, Northwood and many more. Don’t have a grid on your table, no problem we can still help with exterior lines or a simple spoilboard pattern.
• 25.4x132x74mm BVC’s full size flat table vacuum cup for your grid can be used to do large parts or can be sectioned off with gasket to do smaller parts.
• FL1074.1

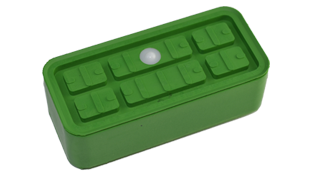

FLAT TABLE CUP IN NEW SIZE 48MM TALL

• BVC is proud to announce a new size vacuum cup added to our flat/grid table cups. This cup sits at 48mm tall and is a great addition to our FL series such as FL1048 etc. This cup is intended to help with longer narrow parts. 75x165x48mm
• Part # FL75165

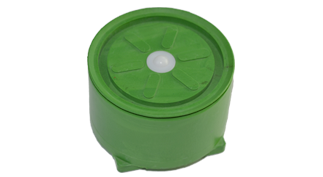

ROUND VACUUM CUP

• The new round 48mm tall flat table cup for your grid. This vacuum cup will mix right in with any of our 48mm tall flat/grid table line of cups. Measures 85mm diameter. Part # RFL8548
• RFL8548

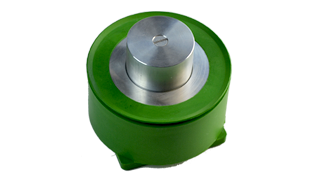

VACUUM OPERATED PIN STOP FOR FLAT TABLE

• Vacuum operated pin stop to line up multiple parts on your flat table.
• This pin stop works with all 48mm tall vacuum cups.
•  Part # RPS1048
• This is a vacuum operated pin stop. Line up multiple parts on your flat table, press the go button and walk away. This is the perfect compliment to your Better Vacuum Cups.

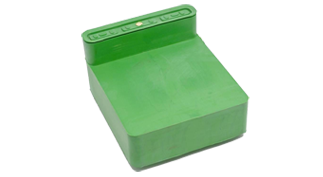

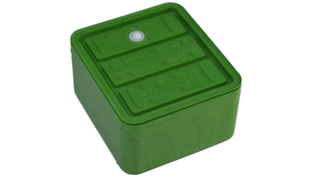

BVC FLAT/GRID TABLE VACUUM CUPS IN 74MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. Maximize the flexibility of your flat table with BVC Flat Table Cups. Fits: Biesse, Busellato, CMS, Conquest, Cosmec, CR Onsrud, Komo, SCM Morbidelli and Routech, Weeke, Northwood and many more. Don’t have a grid on your table, no problem we can still help with exterior lines or a simple spoilboard pattern.
• 145x132x74mm BVC’s full size flat table vacuum cup for your grid can be used to do large parts or can be sectioned off with gasket to do smaller parts.
• FL1074

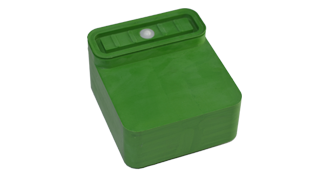

BVC FLAT/GRID TABLE VACUUM CUPS IN 74MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. Maximize the flexibility of your flat table with BVC Flat Table Cups. Fits: Biesse, Busellato, CMS, Conquest, Cosmec, CR Onsrud, Komo, SCM Morbidelli and Routech, Weeke, Northwood and many more. Don’t have a grid on your table, no problem we can still help with exterior lines or a simple spoilboard pattern.
• 50x132x74mm BVC’s quarter size flat table vacuum cup is used for parts as small as 2 inches.
• FL1074Q

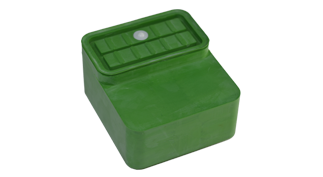

BVC FLAT/GRID TABLE VACUUM CUPS IN 74MM HEIGHT

• Our flat table cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. Maximize the flexibility of your flat table with BVC Flat Table Cups. Fits: Biesse, Busellato, CMS, Conquest, Cosmec, CR Onsrud, Komo, SCM Morbidelli and Routech, Weeke, Northwood and many more. Don’t have a grid on your table, no problem we can still help with exterior lines or a simple spoilboard pattern.
• 75x132x74mm BVC’s full size flat table vacuum cup for your grid can be used to do large parts or can be sectioned off with gasket to do smaller parts.
• FL1074H

FLAT/GRID TABLE PACKAGES AVAILABLE PACKAGE A

• Better Vacuum Cups has created a few new packages to help you get started on manufactring small parts on your nested based cnc router.
• Package A: 8 - FL1000 145x132x29mm

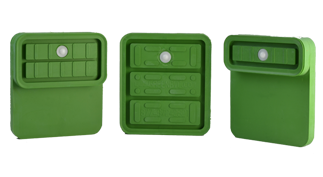

FLAT/GRID TABLE PACKAGES AVAILABLE PACKAGE B

• Better Vacuum Cups has created a few new packages to help you get started on manufactring small parts on your nested based cnc router.
• Package B:
• 4- FL1000  145x132x29mm
• 2- FL1000H 75x132x29mm
• 2- FL1000Q 50x132x29mm

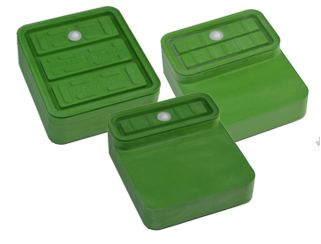

FLAT/GRID TABLE PACKAGES AVAILABLE PACKAGE C

• Better Vacuum Cups has created a few new packages to help you get started on manufactring small parts on your nested based cnc router.
• Package C:
• 4- FL1048 145x132x48mm
• 2- FL1048H 75x132x48mm
• 2- FL1048Q 50x132x48mm

FLAT/GRID TABLE PACKAGES AVAILABLE PACKAGE D

• Better Vacuum Cups has created a few new packages to help you get started on manufacturing small parts on your nested based CNC router.
• Package D:
• 8- FL1048 145x132x48mm
• 4- FL1048H 75x132x48mm
• 4- FL1048Q 50x132x48mm

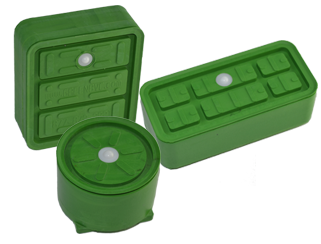

FLAT/GRID TABLE PACKAGES AVAILABLE PACKAGE E

• Package E: This is a great starter package where you can add additional parts to help with your projects such as our pin stop to help locate parts. To see more parts for your nested/flat table router, please see Products page Flat/grid table cups.
• 4 - FL1048 145x132x48mm Full size flat/grid table cups
• 2 - RFL75160 75x160x48mm Half size flat/grid table cups
• 2 - RFL8548 85mm diameter round flat/grid table cups

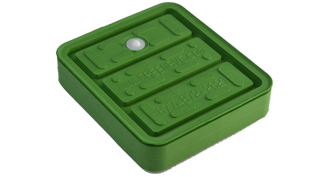

ANDERSON/OMNITECH GRID TABLE VACUUM CUP BY BVC

• Better Vacuum Cup for Anderson grid table. 132x145x29mm  Vacuum Cups fits right down in the grid of your table. Elevate parts and do solid wood, horizontal boring, bullnosing etc.
• AN1000
• Note: Anderson/Omnitech have their own grid table system. Our cups fit in this grid pattern but this cup must be ordered correctly to fit the table specific for your machine.

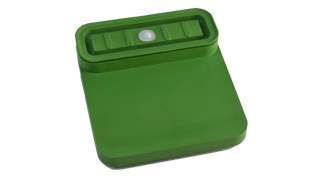

ANDERSON/OMNITECH GRID TABLE VACUUM CUP BY BVC

• Better Vacuum Cup for Anderson grid table. 50x132x29mm  Vacuum Cups fits right down in the grid of your table. Elevate parts and do solid wood, horizontal boring, bullnosing etc.
• AN1000Q
•  Note: Anderson/Omnitech have their own grid table system. Our cups fit in this grid pattern but this cup must be ordered correctly to fit the table specific for your machine.

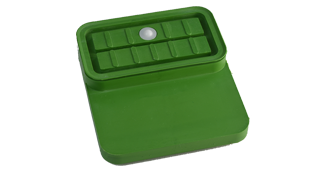

ANDERSON/OMNITECH GRID TABLE VACUUM CUP BY BVC

• Better Vacuum Cup for Anderson grid table. 75x145x29mm  Vacuum Cups fits right down in the grid of your table. Elevate parts and do solid wood, horizontal boring, bullnosing etc.
• AN1000H
• Note: Anderson/Omnitech have their own grid table system. Our cups fit in this grid pattern but this cup must be ordered correctly to fit the table specific for your machine.

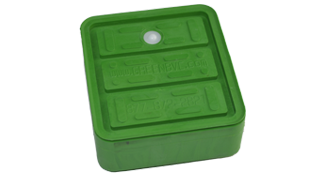

ANDERSON/OMNITECH GRID TABLE VACUUM CUP BY BVC

• Better Vacuum Cup for Anderson grid table. 132x145x48mm  Vacuum Cups fits right down in the grid of your table. Elevate parts and do solid wood, horizontal boring, bullnosing etc.
• AN1048

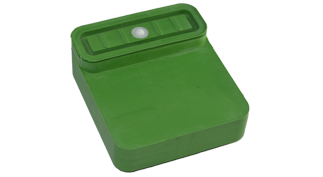

ANDERSON/OMNITECH GRID TABLE VACUUM CUP BY BVC

• Better Vacuum Cup for Anderson grid table. 50x132x48mm  Vacuum Cups fits right down in the grid of your table. Elevate parts and do solid wood, horizontal boring, bullnosing etc.
• AN1048Q
• Note: Anderson/Omnitech have their own grid table system. Our cups fit in this grid pattern but this cup must be ordered correctly to fit the table specific for your machine.

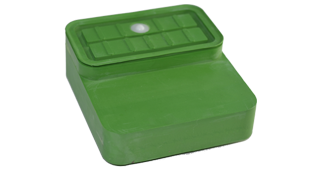

ANDERSON/OMNITECH GRID TABLE VACUUM CUP BY BVC

• Better Vacuum Cup for Anderson grid table. 75x145x48mm  Vacuum Cups fits right down in the grid of your table. Elevate parts and do solid wood, horizontal boring, bullnosing etc.
• AN1048H
• Note: Anderson/Omnitech have their own grid table system. Our cups fit in this grid pattern but this cup must be ordered correctly to fit the table specific for your machine.

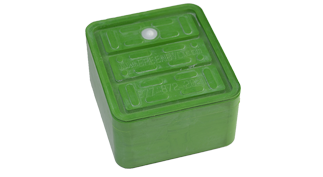

ANDERSON/OMNITECH GRID TABLE VACUUM CUP BY BVC

• Better Vacuum Cups manufactures a vacuum cup in 74mm height for the Anderson/Omnitech Routers. 145x132x74mm. AN1074 BVC’s full size flat table vacuum cup for the Anderson/Omnitech grid can be used to do large parts or can be sectioned off with gasket to do smaller parts.
• AN1074
• Note: Anderson/Omnitech have their own grid table system. Our cups fit in this grid pattern but this cup must be ordered correctly to fit the table specific for your machine.

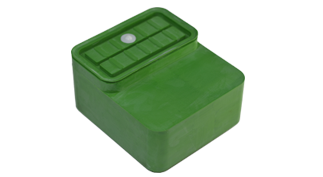

ANDERSON/OMNITECH GRID TABLE VACUUM CUP BY BVC

• Better Vacuum Cups AN1074H 75x132x74mm BVC’s Half size flat table vacuum cup is used for smaller parts.
• AN1074H

ANDERSON/OMNITECH GRID TABLE VACUUM CUP BY BVC

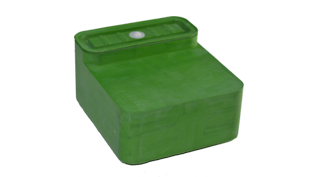

• Better Vacuum Cups AN1074Q 50x132x74mm BVC’s full size flat table vacuum cup for the Anderson/Omnitech grid can be used to do large parts or can be sectioned off with gasket to do smaller parts.
• AN1074Q

BVC REPLACEMENTS FOR BIESSE ROVER ATS CUPS IN 145x132x29(WxLxH)

• BVC designed our own exclusive ball valve for our BVC brand vacuum cups.
• BV1000 BVC Ball valve Replacement for all BVC cups except Bi0039.
• 15mm Diameter

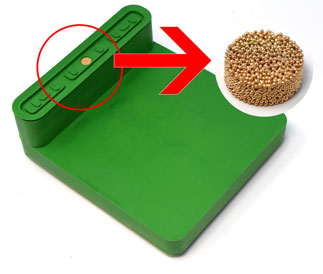

• Bronze Filter for 1 inch cups.
